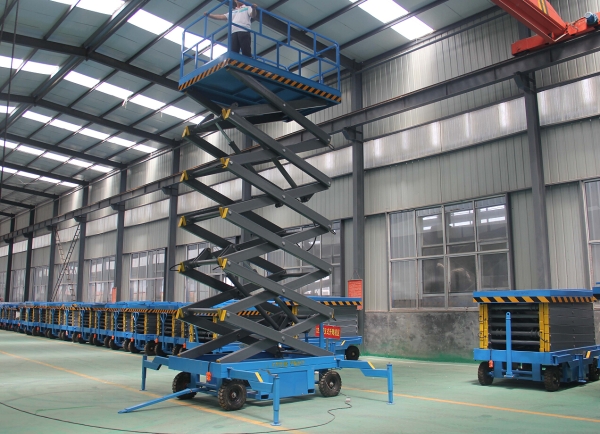

Mobile Scissor Lift Platform
Mobile Scissor Lift Platform
Features:
1.High strength steel structures, smoothly lifting up and dropping down, easily move and operated, few faults. Max lift height ranging from 4m to 20m,load capacity can be 300kg,500kg,1000kg,etc.
2.Big work table size,strechable table also be ok.
3.Moving method: 4 wheel mobile or 2 wheel towable,auxiliary walking,etc.
4.Tyres are optional, it could be pneumatic rubber tyres, solid rubber tires or polyurethane tires.
5.Big work table size,strechable table also be ok.
6.Power:110V,220V,380V,AC,DC battery or diesel available.
Safety protection:
1.Explosion-proof valves:protect hydraulic pipe,anti-hydraulic pipe rupture.
2.Spillover valve:prevent high pressure when the machine moves up,adjust the pressure.
3.Emergency decline valve:can go down when meet emergency.
Applications:
It is widely used for the equipment installations and maintenance at the following places like steel construction building, workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
|
Model |
Capacity |
Table Size |
Platform height |
Guardrail |
Total dimension |
Net weight |
|
|
SJY0.3-4 |
300Kg |
2100*820mm |
4m |
1100mm |
2200*900*1100mm |
850kg |
|
|
SJY0.3-6 |
300Kg |
2100*820mm |
6m |
1100mm |
2200*950*1200mm |
880kg |
|
|
SJY0.3-7 |
300Kg |
2100*820mm |
7m |
1100mm |
2200*950*1280mm |
980kg |
|
|
SJY0.3-8 |
300Kg |
2100*900mm |
8m |
1100mm |
2200*1060*1380mm |
1050kg |
|
|
SJY0.3-9 |
300Kg |
2100*900mm |
9m |
1100mm |
2200*1060*1500mm |
1165kg |
|
|
SJY0.3-10 |
300Kg |
2100*1200mm |
10m |
1100mm |
2200*1350*1530mm |
1360kg |
|
|
SJY0.3-11 |
300Kg |
2100*1200mm |
11m |
1100mm |
2200*1400*1650mm |
1700kg |
|
|
SJY0.3-12 |
300Kg |
2550*1500mm |
12m |
1100mm |
2720*1670*1750mm |
2260kg |
|
|
SJY0.3-14 |
300Kg |
2800*1500mm |
14m |
1100mm |
3040*1730*1810mm |
2400kg |
|
|
SJY0.3-16 |
300Kg |
3070*1600mm |
16m |
1100mm |
3250*1800*1920mm |
3400kg |
|
|
SJY0.3-18 |
300Kg |
3070*1600mm |
18m |
1100mm |
3250*1800*2080mm |
3600kg |
